How to find CPU info in Linux

Updated - December 30, 2017 by Arnab Satapathi

Sometimes we need to find CPU related information in a Linux system, such as CPU vendor, number of CPU cores, number of threads, CPU clock speed, available CPU cache and many more.

You can easily check CPU info in Linux with  few commands, there are many GUI apps for this as well, like kInfocenter for KDE or gtk based HardInfo app.

We are going to get those results from the /proc/cpuinfo file, lscpu and dmidecode commands. Lets start,

Contents

  • Check CPU info from the /proc/cpuinfo file in Linux
  • Find CPU vendor and model number
  • Find number of CPU socket, cores, threads and NUMA nodes
  • Find CPU architecture, CPU endianness and supported operation modes
  • Find current, maximum and minimum CPU frequency
  • Check CPU cache memory
  • Check CPU microcode version
  • GUI apps to find CPU info Linux
  • Conclusion

Check CPU info from the /proc/cpuinfo file in Linux

This file is generated by the kernel during boot, contains some information about the CPU in a human readable format. This file could be used in different ways to know CPU related info.

The easiest method is use the cat command and read it, or use the grep command to directly print the filtered results, no root privileges required.

cat /proc/cpuinfo

Now being more specific, filter the output of different commands and print exactly what we need, also use all three sources commands when needed to check cpu info in Linux.

Find CPU vendor and model number

  1. With the lscpu command
    lscpu | grep -iE 'model name|vendor id'
    Vendor ID:             GenuineIntel
    Model name:            Intel(R) Core(TM) i5-2410M CPU @ 2.30GHz
  2. From the /proc/cpuinfo file
    grep -i 'vendor' /proc/cpuinfo | uniq

    vendor_id       : GenuineIntel
    grep -i 'model name' /proc/cpuinfo | uniq

    model name      : Intel(R) Core(TM) i5-2410M CPU @ 2.30GHz
  3. With the dmidecode command
    sudo dmidecode -t 4 | grep -i 'Manufacturer:|Version:'
    Manufacturer: Intel(R) Corporation
    Version: Intel(R) Core(TM) i5-2410M CPU @ 2.30GHz

Find number of CPU socket, cores, threads and NUMA nodes

you can use any method mentioned above to find out this, I'm using the lscpu command here. All grep filtering parameters are merged into one, use only whatever you need.

lscpu | grep -iE 'Thread(s) per core:|Core(s) per socket:|Socket(s):|NUMA node(s):'
Thread(s) per core:    2
Core(s) per socket:    2
Socket(s):             1
NUMA node(s):          1

You need to append each brackets with one backslash for proper functioning of grep command. If you are not familiar with what is NUMA, read this NUMA wiki article.

You can easily observe the hyper threading capability of the CPU from the threads per core count, here it's 2 threads per core.

While building some software form source in Linux with make , you probably use the -j flag for faster parallel compilation, you could automatically assign number of CPUs with this command,

amazon prime logo
Try AmazonPrime for free
Enjoy free shipping and One-Day delivery, cancel any time.
nproc

Or use the grep command like bellow

grep -c "^processor" /proc/cpuinfo

You may create an alias or use it directly like bellow

make -j $(grep -c "^processor" /proc/cpuinfo)

Find CPU architecture, CPU endianness and supported operation modes

To know your CPU architecture, it supports 64 bit OS or not, and CPU endianness , use the lscpu command.

lscpu | grep -iE 'Architecture:|CPU op-mode(s):|Byte Order:'
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian

Find current, maximum and minimum CPU frequency

To find out current CPU frequency, use the /proc/cmdline file to get per thread frequency,

grep -i mhz /proc/cpuinfo

To check the current frequency and maximum/minimum frequency supported by the CPU use the lscpu command.

lscpu | grep -iE 'CPU MHz|CPU max MHz|CPU min MHz'
CPU MHz:               800.328
CPU max MHz:           2900.0000
CPU min MHz:           800.0000

You can use the CoreFreq application on Linux to check CPU usage and more.

Check CPU cache memory

You can use the lscpu command to find available L1, L2 and L3 cache memory.

lscpu | grep 'cache'

Another method could be

grep -i 'cache size' /proc/cpuinfo | uniq

The hwloc -ls command displays the CPU cache memory in a nice picture, it's a GUI app, more about hwloc-ls bellow.

Check CPU microcode version

CPU microcode could be called the firmware of the CPU, to enhance it's usability and add new features. To check CPU microcode version use,

grep -i microcode /proc/cpuinfo | uniq

An alternative method could be with dmesg

dmesg | grep -i microcodr

Read more about microcode, how to update CPU microcode in Linux.

GUI apps to find CPU info Linux

There are lots of them, KInfocenter, HardInfo, cpu-g, hwloc and so on, I'm going to discus about Hardinfo and hwloc .

Here's how to install Hardinfo in any Debian based distro with apt-get.

sudo apt-get install hardinfo

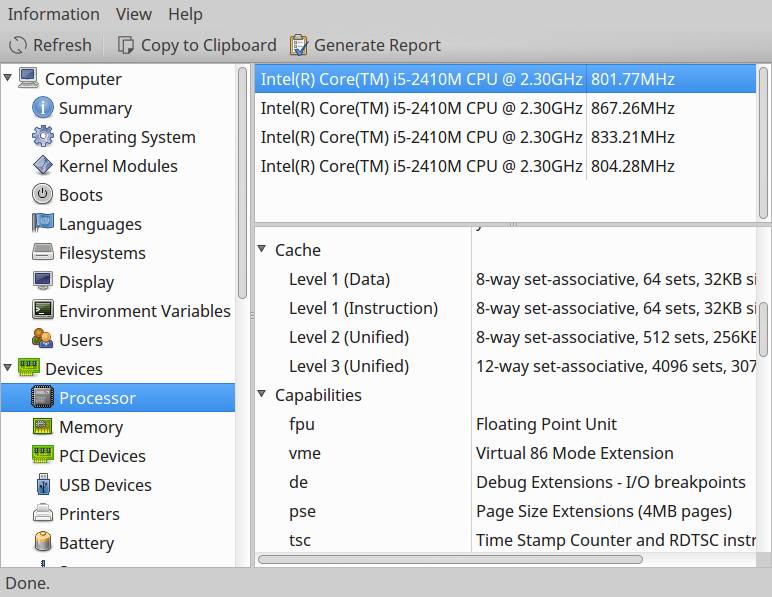

You could run it from a terminal emulator by running the hardinfo command,or open up from the menu, usually named as System Profiler and Benchmark.hardinfo find cpu info linuxThe HardInfo interface is quite easy to understand, explore through different options to discover more.

Now the hwloc, install it with apt-get in any Debian based distro,

sudo apt-get install hwloc

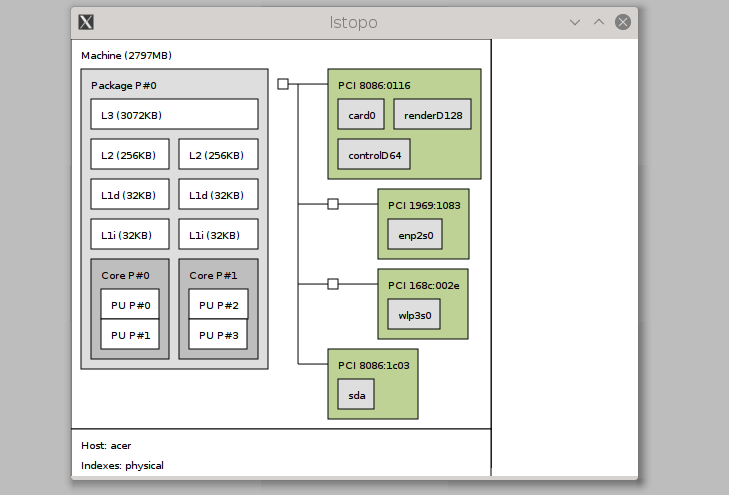

Run hwloc-ls or lstopo , this will open up a GUI window, displaying a nice image like bellow.lstopo find cpu info linuxA great visual representation of the CPU information and how some devices are connected through the PCI-E bus.

Conclusion

So, that;'s it, how you could find CPU info in Linux, strip down the commands according to your need while using within a shell script. I hope this tutorial is informative and easy to understand.

If you have any suggestion or question, just drop a comment, also don't forget to share this tutorial if you find it useful.
