How to Install LTspice in Linux - Quick tip

Updated - December 15, 2017 by Arnab Satapathi

LTspice is one of the best free SPICE simulation software available around, used by students to professionals.

But it's quite unfortunate that LTspice Linux version is not available, it's built to run on Windows and macOS only. But you can run the Windows version on Linux through Wine.

I've got some trouble while trying to install the latest LTspice XVII through Wine, mostly due to missing 32 bit libraries.

So, here's this little quick tip, how to install LTspice on Linux.

Contents

  • Install Wine and other dependencies
  • Install LTspice Linux
  • Running LTspice on Linux
  • Conclusion

Install Wine and other dependencies

Most probably you know how to install Wine in your Linux distro, but I'm going to repeat the same thing again !

To install Wine using apt in Debian or other Debian based distros like Ubuntu, Linux Mint, use the following instructions.

If you're on a 64 bit installation, then you've to enable i386 repository, it may be necessary to run some parts of Wine properly.

First open up a terminal emulator, then run the commands one by one, listed below.

sudo dpkg --add-architecture i386             # Add the i386 architecture
sudo apt-get update
sudo apt-get install wine wine-mono0.0.8 wine-gecko2.21

Don't forget to check the proper wine-mono and wine-gecko version.

Install LTspice Linux

Now you've to download the LTspice version XVII, get it from here.

amazon prime logo
Try AmazonPrime for free
Enjoy free shipping and One-Day delivery, cancel any time.

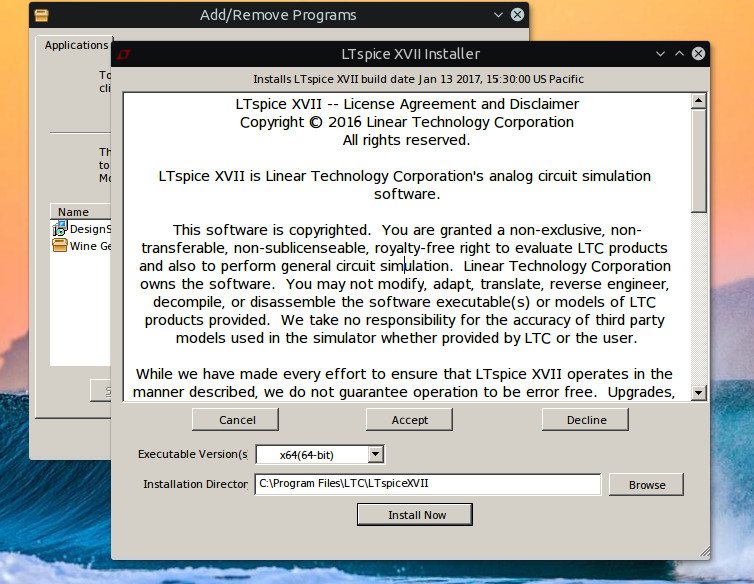

Usually double clicking the exe file will start the Wine program installer interface.

install ltspice linux

Installation process is quite straight forward, nothing special.

Running LTspice on Linux

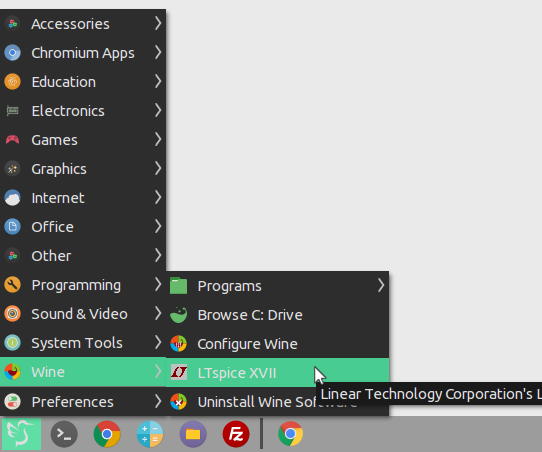

The installer should create a application entry in under the wine applications. You should try running LTspice from that menu entry first.linux ltspice

If not, then you could try to run the executable directly with the wine command, example below.

wine ~/.wine/drive_c/Program\ Files/LTC/LTspiceXVII/XVIIx64.exe

Assuming you've configured wine as usual.

ltspice ubuntu
LTspice running on Ubuntu

Conclusion

So, that's all you need to do to install LTspice in Linux, specifically in Ubuntu or Debian based linux distributions.

If you have any suggestion or question about LTspice linux, please leave your comments below. Happy simulation !

Filed Under: Quick tip Tagged With: electronics, Ubuntu

Your comments
  1. steph says

    January 30, 2021

    Thank you.
    I'm getting the error below. I installed winehacks, but it remains. All older wine and mono instances on my machine have been purged. Running Linux Mint (Ubuntu 18.04):
    ```
    err:module:find_forwarded_export function not found for forward 'kernel32.SleepConditionVariableCS' used by L"C:\\windows\\system32\\api-ms-win-core-synch-l1-2-0.dll". If you are using builtin L"api-ms-win-core-synch-l1-2-0.dll", try using the native one instead.
    err:module:find_forwarded_export function not found for forward 'kernel32.WakeAllConditionVariable' used by L"C:\\windows\\system32\\api-ms-win-core-synch-l1-2-0.dll". If you are using builtin L"api-ms-win-core-synch-l1-2-0.dll", try using the native one instead.
    ```

    Reply
  2. MJones says

    February 15, 2020

    Worked here for an exotic config! I keep one master LTspice in a Dropbox folder to sync with multiple machines. In Lubuntu, created a soft-link inside /home/me/.wine/drive_c/Program Files named LTspice which pointed to /home/me/Dropbox/MyApps/LTspice. Then started it with wine "/home/me/.wine/drive_c/Program Files/LTspice/XVIIx64.exe" and it runs fine. Note, in dialogs where CTRL+M is used in Windows to insert a newline, CTRL-ENTER worked for me in Lubuntu.

    Reply
  3. Rafał says

    December 29, 2019

    Works on Salix 14.1

    Reply
  4. Aniebiet Akpan says

    November 24, 2019

    Thank you very much.

    Reply
  5. bfg45 says

    September 2, 2019

    Thank you for the write up, but this did not work on Ubuntu 18.04 LTS. Have to figure it out.

    Reply
  6. Samar Singh says

    August 25, 2018

    Thanks! This is perfect, and easy. LTSpice Working fine on linux mint 19.

    Reply
    • steph says

      January 30, 2021

      Anything special you had to do?
      I'm getting this:
      ```
      err:module:find_forwarded_export function not found for forward 'kernel32.SleepConditionVariableCS' used by L"C:\\windows\\system32\\api-ms-win-core-synch-l1-2-0.dll". If you are using builtin L"api-ms-win-core-synch-l1-2-0.dll", try using the native one instead.
      err:module:find_forwarded_export function not found for forward 'kernel32.WakeAllConditionVariable' used by L"C:\\windows\\system32\\api-ms-win-core-synch-l1-2-0.dll". If you are using builtin L"api-ms-win-core-synch-l1-2-0.dll", try using the native one instead.
      ```

      Reply
  7. Tom Moody says

    March 2, 2018

    Thank you. Installed Wine and LTSpice with your simple instructions and now my favorite program works on Ubuntu perfectly.

    Reply
